Ergonomic Split Layout: Featuring a split design, you can freely adjust the distance and angle between the left and right halves, allowing your hands and shoulders to rest in the most natural position and significantly reducing muscle strain caused by prolonged typing or gaming.
Ultra-Compact 36-Key Design: With a streamlined 3x5 layout plus edge keys, every key is within easy reach of your fingers, minimizing finger travel and greatly improving typing efficiency.
Ready to Use: This version is a fully assembled product. The keyboard comes pre-installed with the high-quality mechanical switches of your choice, paired with classic XDA-height keycaps that offer excellent tactile feedback. No complicated assembly is required—simply unbox, connect, and start typing.
Full Hot-Swappable: The PCB supports damage-free hot-swapping and is compatible with the vast majority of standard MX-type mechanical switches on the market. No soldering tools are required, so you can swap out the switches for your favorites anytime, anywhere.

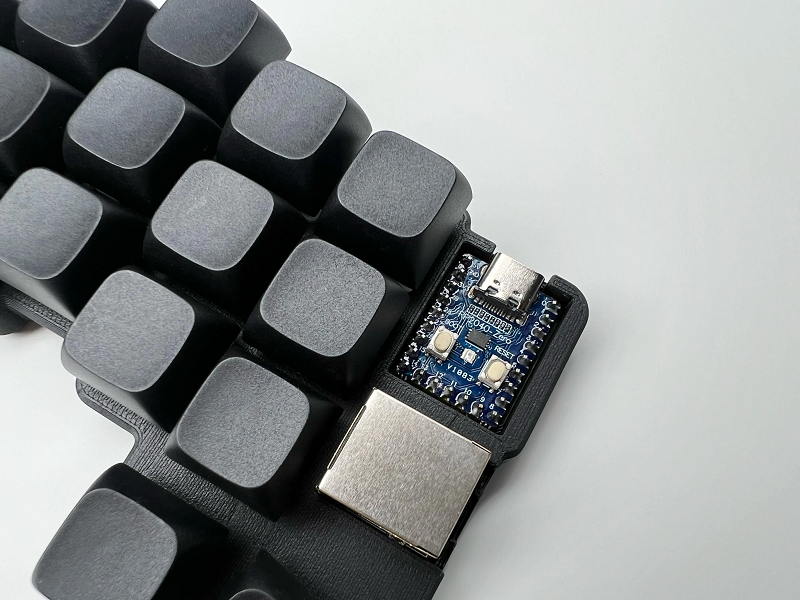

Robust QMK/Vial Customization Ecosystem: Powered by a high-performance RP2040 core controller with 2MB of flash memory, this keyboard fully supports QMK firmware and Vial software. There's no need for complex flashing — you can remap keys, set macros, and configure multi-layer functions in real time through a web browser or client app.
Multifunctional Knob (Rotary Wheel): Features an integrated on-board rotary encoder that, by default, allows for quick volume adjustment or page scrolling, but can also be customized via software to function as any shortcut key.
Ultra-Safe RJ45 Ethernet Connection: Data is transmitted between the two keyboard halves via a sturdy CAT6 Ethernet cable, completely eliminating the hardware risk—common with traditional TRRS (3.5mm audio cables)—of the main controller chip being damaged by hot-swapping while the cable is live.
Minimalist, screw-free snap-fit housing: Crafted from carefully selected matte PLA material using FDM 3D printing technology, this snap-fit housing eliminates the hassle of screws, making it extremely easy to disassemble and reassemble the bottom shell. (Note: Due to the nature of the 3D printing process, the surface may exhibit slight layer lines or textures, which are normal characteristics of the manufacturing process.)
Package Contents：
Complete Keyboard Version
- Fully assembled and flashed keyboard
- Switches of your choice installed
- XDA keycaps installed
- Ready to use out of the box
Accessories
- 0.5m CAT6 cable included to connect both halves
- USB-C cable not included
| High-concerned chemical | None | Style | Standard,Split Keyboard |
| Interface Type | USB | Battery Included | no |
| Operation Style | Mechanical | Language | English |
| Keyboard Standard | Mini Keyboard | Application | Desktop,Laptop |
| Type | Wired | Brand Name | Z-Dimension |
| Origin | Mainland China | ||
